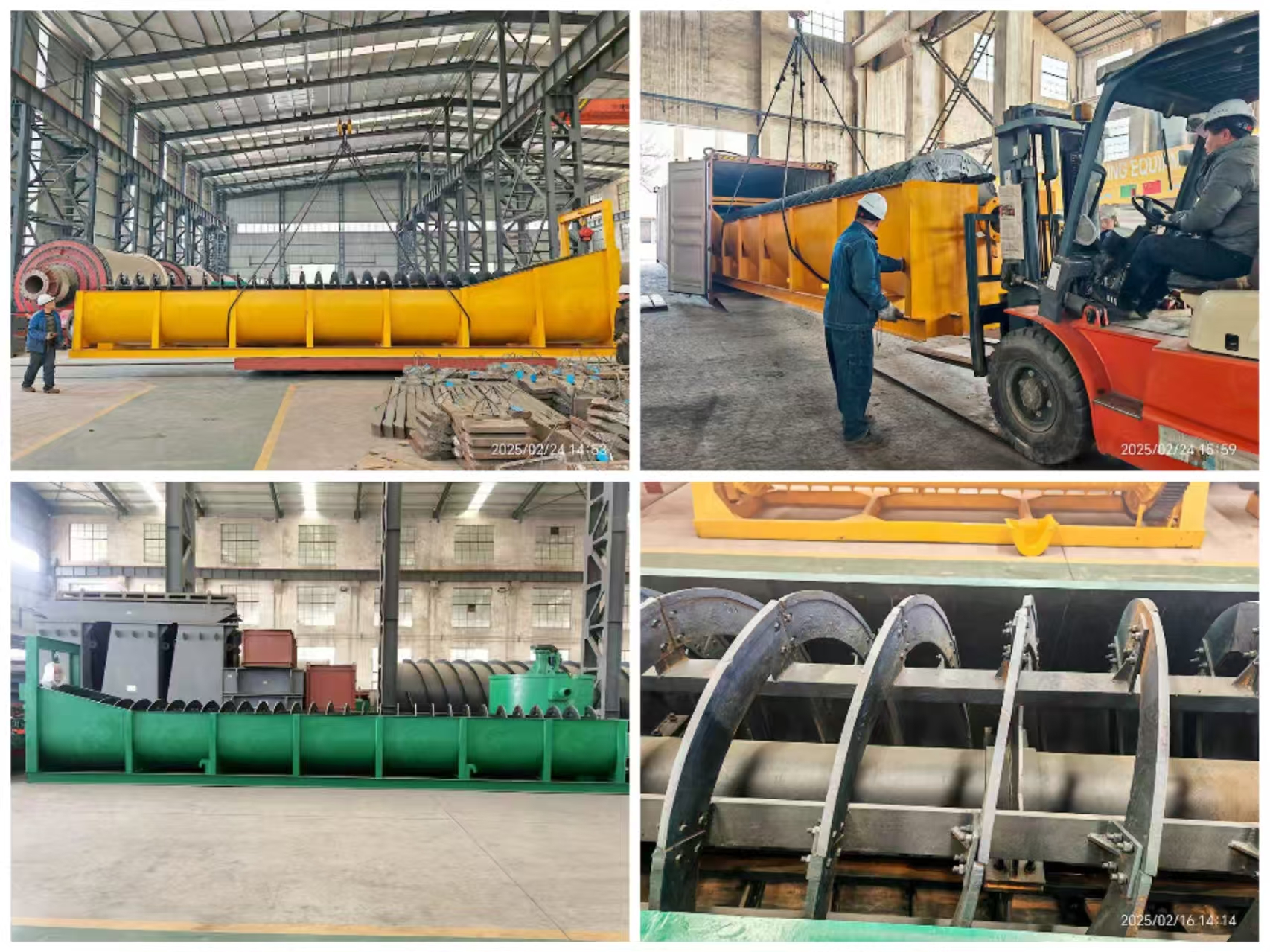

Screw Sand stone washing machine
Screw sand-Stone-Washing Machine is widely used for washing， separation, classification and removal of extraneous materials and so on in such industry as metallurgy, building materials, and water resources and hydropower, etc, and it is applicable for washing separation of fine and coarse materials, especially of sand for building and road construction.
Screw sand-Stone-Washing Machine is widely used for washing， separation, classification and removal of extraneous materials and so on in such industry as metallurgy, building materials, and water resources and hydropower, etc, and it is applicable for washing separation of fine and coarse materials, especially of sand for building and road construction.
型号规格Model | 螺旋直径Spiral Diameter（mm） | 槽体长度Trough Length （mm） | 产量Capacity（t/d） | 电机功率Power（KW） | 重量Weight（Kg） | |
返砂Return Sand | 溢流Overfall | |||||
FG-50 | 500 | 4500 | 135-210 | 32 | 1.1 | 1600 |
FG-75 | 750 | 5500 | 340-570 | 65 | 3 | 2700 |
FG-100 | 1000 | 6500 | 675-1080 | 110 | 5.5 | 4400 |
FG-120 | 1200 | 6500 | 1170-1870 | 155 | 5.5 | 8700 |
FG-150 | 1500 | 8300 | 1830-2740 | 235 | 7.5 | 12500 |
FG-200 | 2000 | 8400 | 3240-5400 | 400 | 11 | 20500 |
FG-240 | 2400 | 9200 | 4650-7450 | 580 | 11-55 | 25700 |
