Sand making line includes vibrating feeder, jaw crusher, high-efficient sand maker, vibrating screen, sand washer, etc. With all the equipments working together, a productive and high-efficient line will produce first-grade sand that can be used in many fields, such as metallurgy, chemistry industries, construction materials, water and electricity. Especially used for fluid sand stone task in highway, railroad, hydroelectric engineering.
Detailed Product Description
YIGONG Sand Making Line:
1 Fully automatic operation
2 High-efficient and productive
3 Long serive life
4 Competitive price
Sand making line(sand making machine

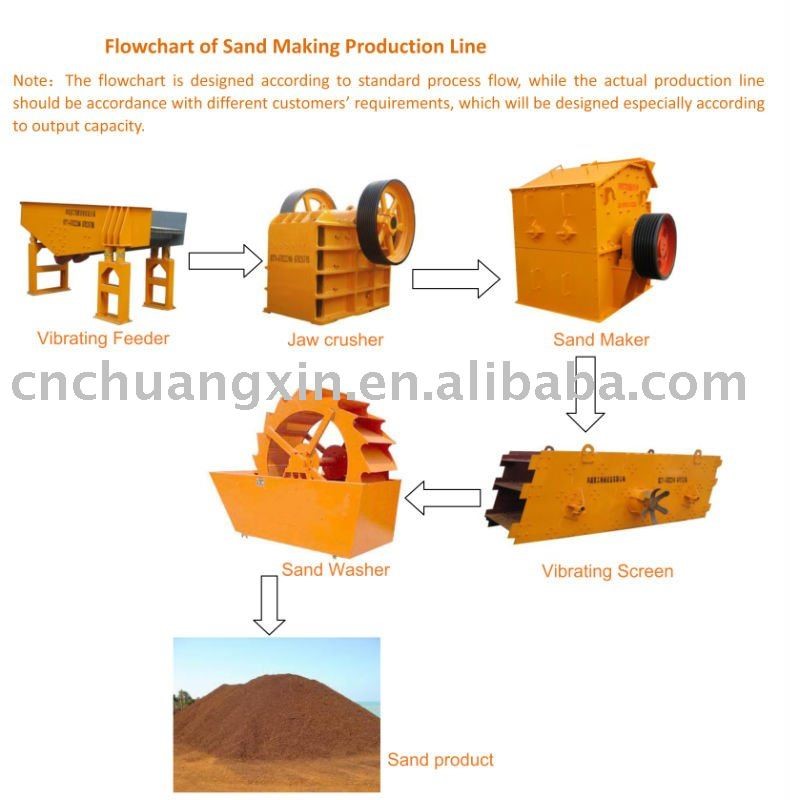

Introduction of sand making line:
Sand making line includes vibrating feeder, jaw crusher, high-efficient sand maker, vibrating screen, sand washer, etc. With all the equipments working together, a productive and high-efficient line will produce first-grade sand that can be used in many fields, such as metallurgy, chemistry industries, construction materials, water and electricity. Especially used for fluid sand stone task in highway, railroad, hydroelectric engineering.

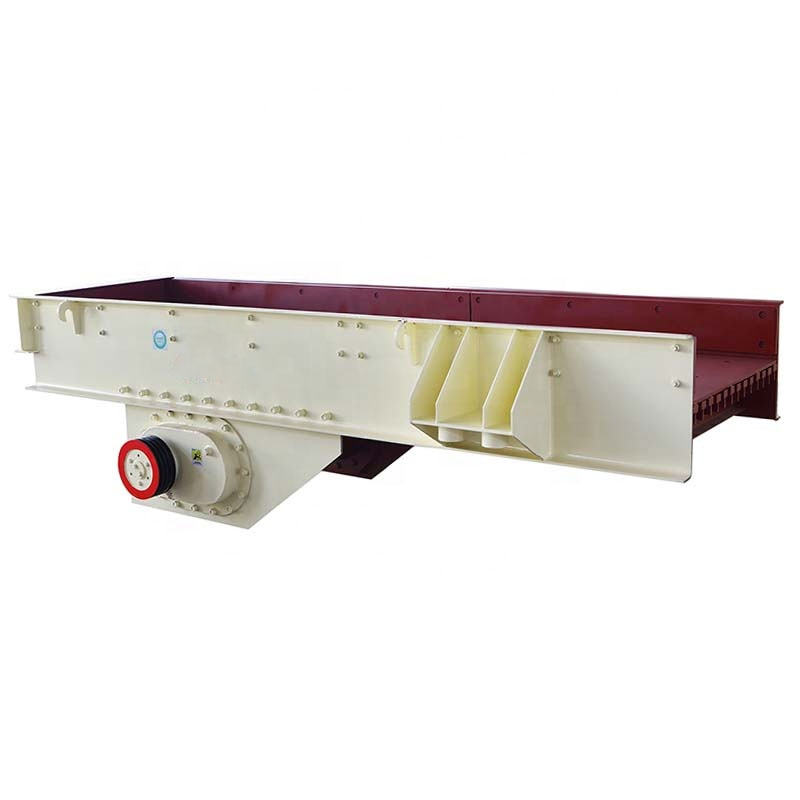

Vibrating feeder:

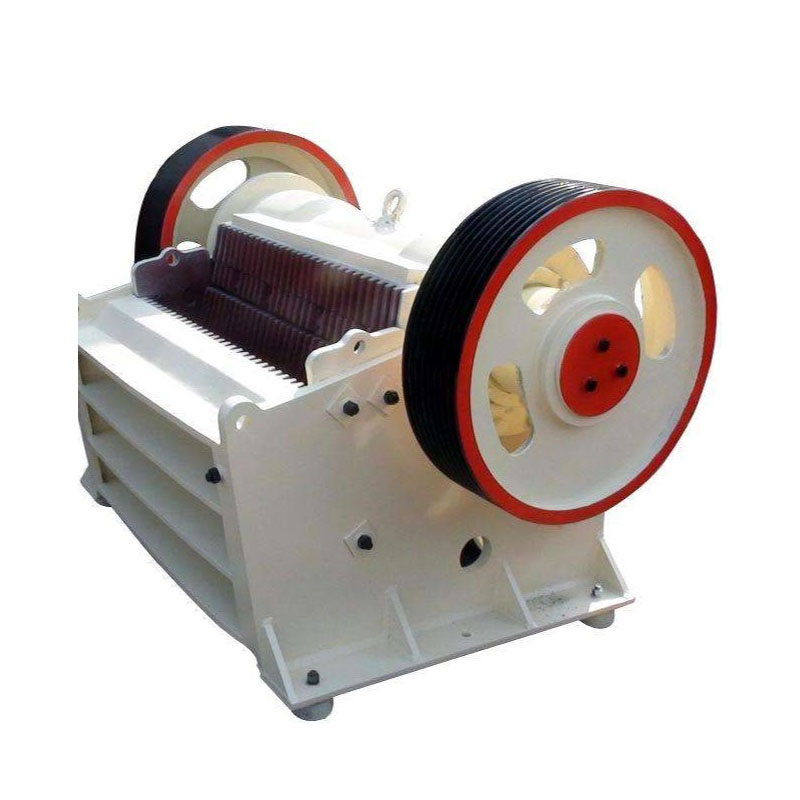

Jaw crusher

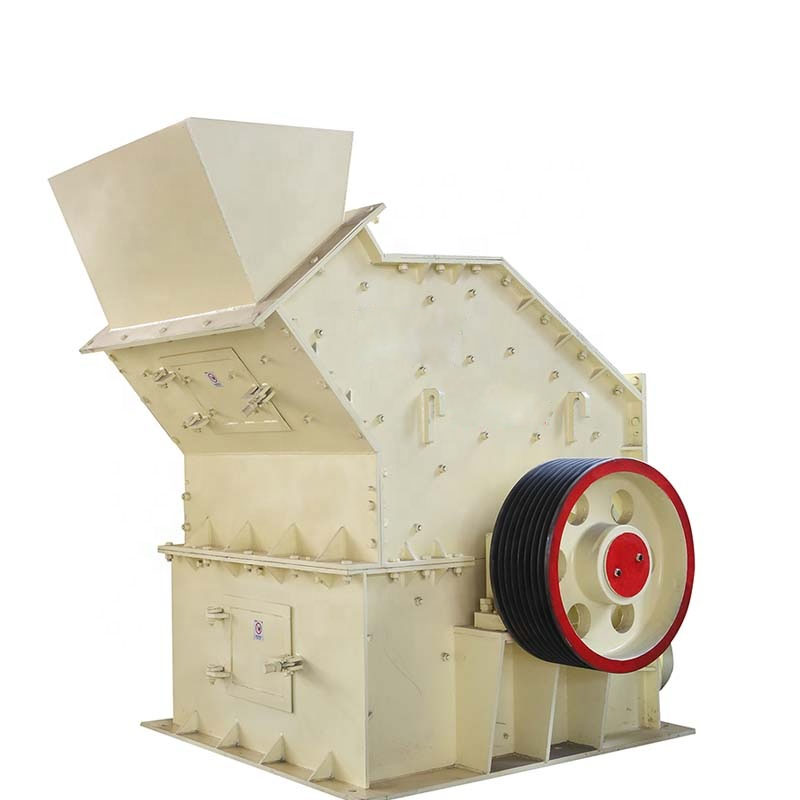

Sand maker:

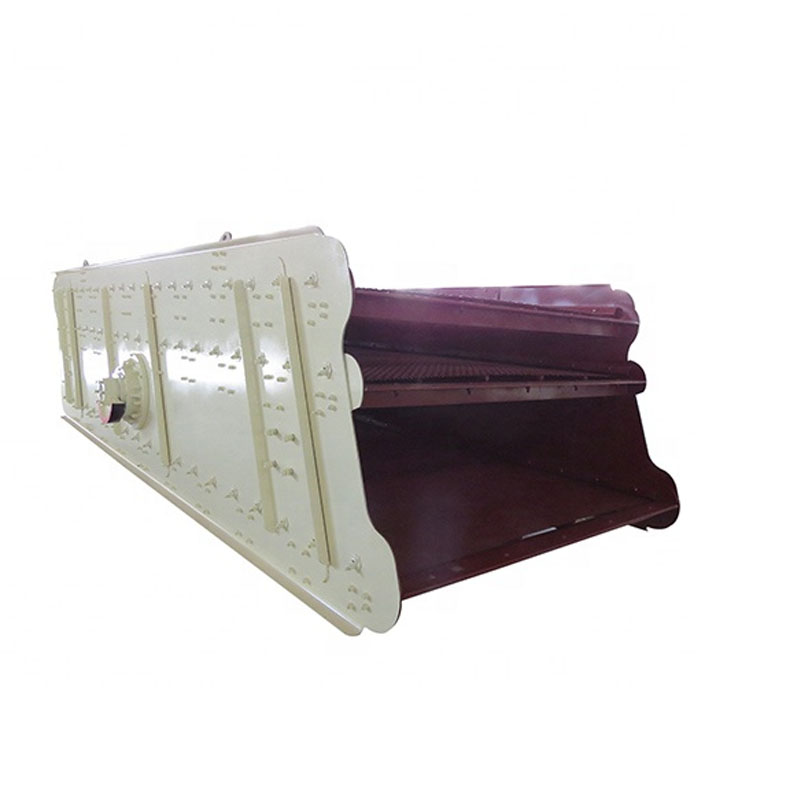

Vibrating screen:

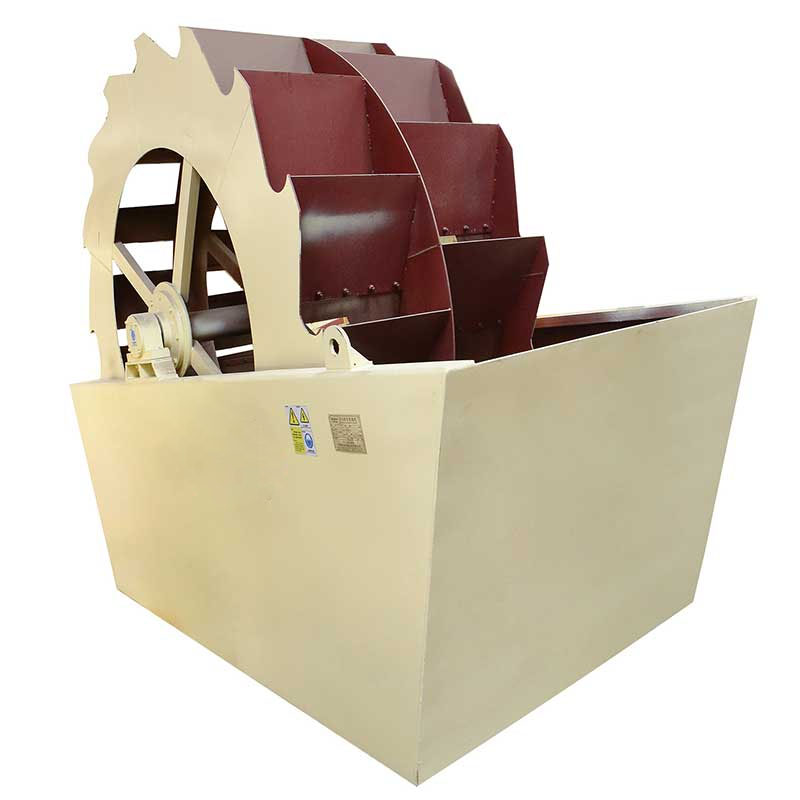

Sand washer:
Machine-made Sand Definition
Machine-made sand is kind of rock particles with diameter less than 4.75mm after removing dirt, crushed and screened while soft rock and weathered rock are not included. Sand specifications: according to fineness modulus (Mx), sand specification is divided into coarse, medium and thin. And among this, fineness modulus of coarse sand is 3.7-3.1, and the medium sand is 3.3-3.0, and the thin sand’s fineness modulus is 2.2-1.6.
Rocks Made for Sand
Sand rock: There are many kinds of rocks used to make sand. Generally there are Granite, Basalt, Natural river pebbles, Andesite, Rhyolite, Diabase, Diorite, Sandstone and Limestone, etc. The sand produced is of different intensity and purposes according to the rocks’ kinds.
Machine-Made Sand Characteristics
1, The diameter of sand particles is between 4.75mm and 0.15mm.
2, The particle level of sand can be divided into 4.75, 2.36, 1.18, 0.60, 0.30 and 0.15. It’s better if they are continuous.
3, Each level should be of a certain percentage. The grain type should be of cubic.
4, Among the sand, the amount of pin sheet is different according to the requirements.
Machine-Made Sand Application
About the sand level, according to its technical requirement, it’s divided into three grades that is I, II and III. The first kind is suitable for concrete whose strength grade is more than C60. The second can be used for concrete whose strength grade is between C30 and C60, and still the sand can be used in making antifreeze, impermeability concrete or others. The last one is suitable for concrete whose strength grade is less than C30 and architectural mortar.
