Flotation Machine

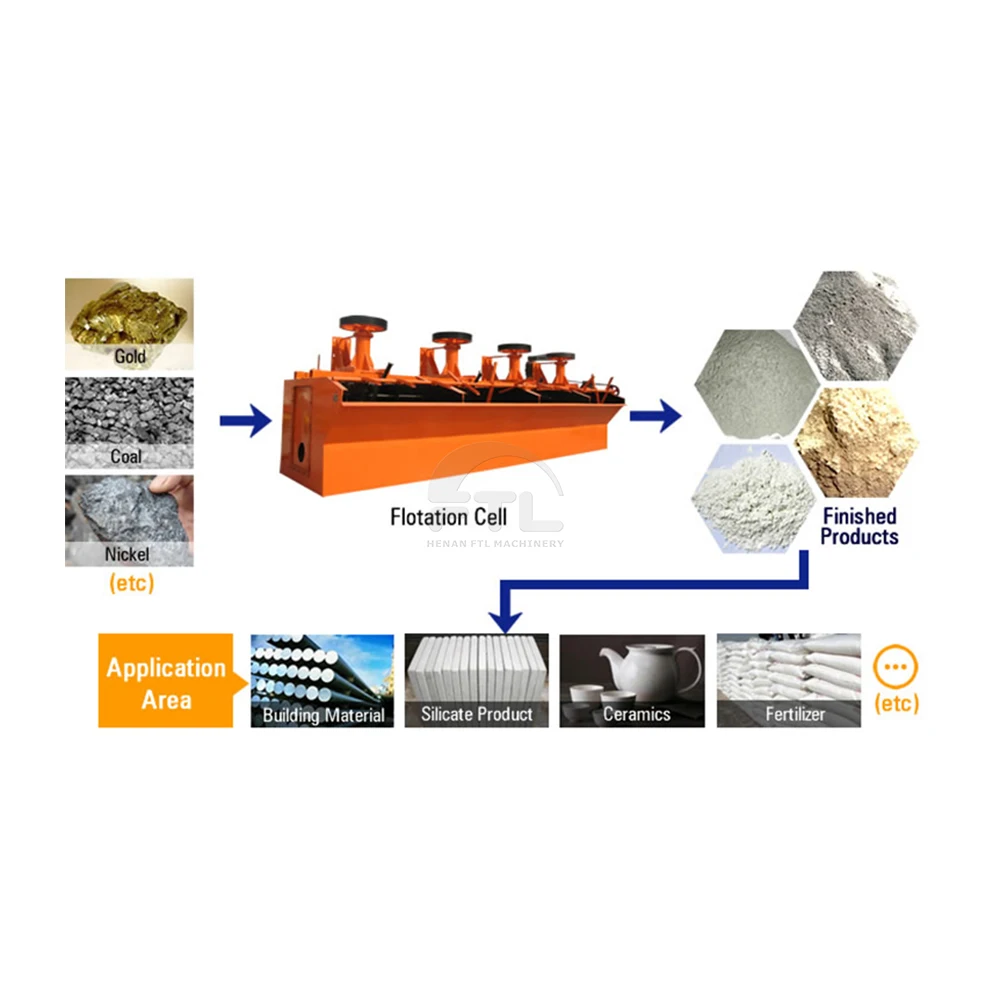

Floatation machine is applicable for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and floatation, so the useful ore are reclaimed.
Floatation machine is applicable for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and floatation, so the useful ore are reclaimed.
规格Type | 有效容积Cell Volume （m3/槽cell） | 叶轮直径Impeller Diameter（mm） | 生产能力Capacity（m3/min） | 叶轮转速Impeller Speed （r/min） | 刮板转速Scraper speed（r/min） | 电机功率Power（KW） | 外形尺寸 四槽一体 Overall Dimension Four-cell in One Body（mm） | 重量 （吨/槽）Weight(t /cell) | |
叶轮电机Impeller Motor | 刮板电机Scraper Motor | ||||||||
XJK-0.13 | 0.13 | 200 | 0.05-0.16 | 600 | 17.5 | 1.5 | 0.55 | 2100*865*900 | 0.35 |
XJK-0.23 | 0.23 | 250 | 0.12-0.28 | 500 | 17.5 | 1.5 | 0.55 | 2625*1130*1290 | 0.41 |
XJK-0.35 | 0.35 | 300 | 0.18-0.5 | 470 | 17.5 | 2.2 | 0.55 | 3012*1350*1320 | 0.45 |
XJK-0.62 | 0.62 | 350 | 0.3-0.9 | 400 | 16 | 3 | 1.1 | 3800*1500*1550 | 0.85 |
XJK-1.1 | 1.1 | 500 | 0.6-1.6 | 330 | 26 | 5.5 | 1.1 | 4680*1820*1950 | 1.4 |
XJK-2.8 | 2.8 | 600 | 1.5-3.5 | 280 | 26 | 11 | 1.1 | 7750*1600*1700 | 2.43 |
Flotation machineIntroduction
Flotation cell machine applicable for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and floatation, so the useful ore are reclaimed.
Flotation machine Working Principle
Flotation cell machine has the advantages of large air-absorption capacity and low energy consumption. Every cell owns three functions: air absorption, slurry absorption, and floatation separation, and the cells form a floatation separation loop by itself without any auxiliary equipment, and is allocated horizontally, which favors the change of flow. The circulation of mineral slurry is reasonable, and can avoid the disposition of coarse sand to the largest extent. There is self-control device on the surface of mineral slurry, so it is easy to adjust it. The impeller has backward-inclined upper and lower vanes, which produce upper and lower circulation of mineral slurrry respectively.
