Hammer Crusher

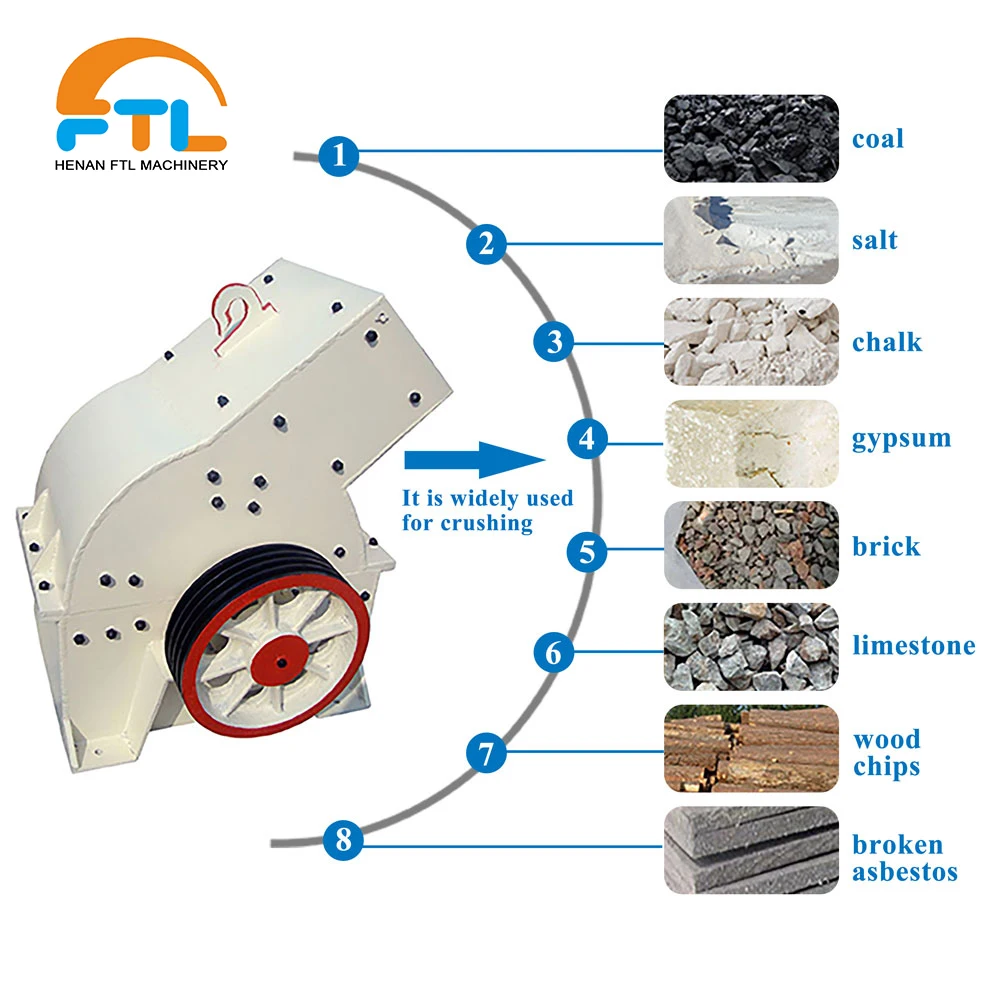

Our hammer crusher series products are applicable for various hard and fragile materials, such as limestone, coal, salt, gypsum, alum, brick and tile, etc. The crushing raw material compressive strength should not exceed 150Mpa,the humidity should not beyond 15%.
Our hammer crusher series products are applicable for various hard and fragile materials, such as limestone, coal, salt, gypsum, alum, brick and tile, etc. The crushing raw material compressive strength should not exceed 150Mpa,the humidity should not beyond 15%.
mineral hammer crusher generally adopts three phase crushing process to crush ore: coarse-crushing, medium-crushing and fine-crushing. The most commonly used ore crushers or minetal crushers are , hammer crusher, and . 2.1m or 2.2m gyratory crusher is often used in coarse crushing (primary crushing), while 2.1m or 2.2m standard cone crusher for medium crushing, and 2.1m or 2.2m short-head type cone crusher for fine crushing. Through the coarse crushing, the size of ore is less than 1m, and after medium crushing and fine crushing, the size becomes less than 12mm. The product with suitable size will be transferred to the final product pile while product with unsuitable size will be transferred to the crusher for re-crushing. This forms a closed cycle. These mineral crusher must be your ideal choice.

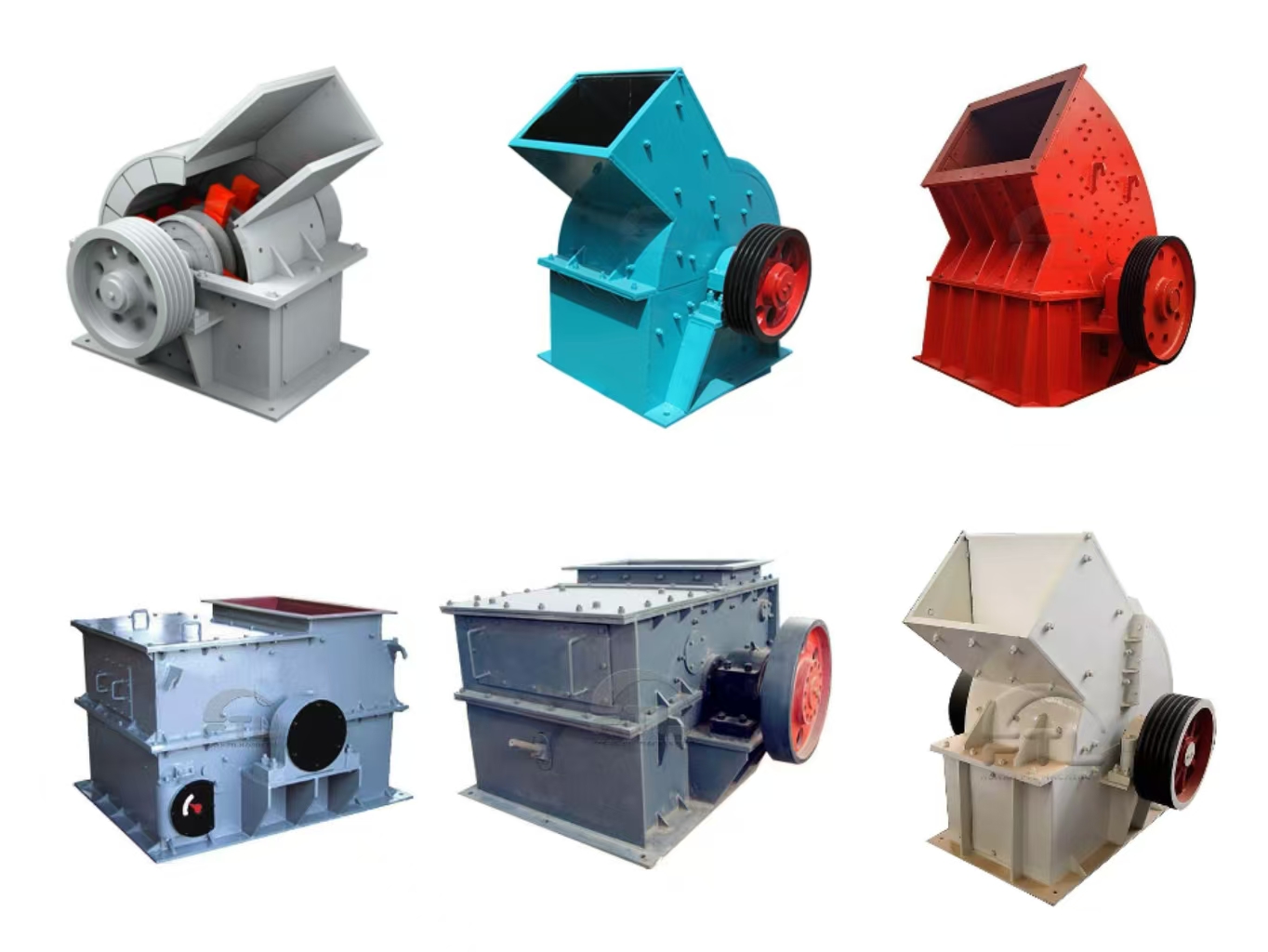

PC series combined hammer crusher pictures:
型号规格Model | 最大进料粒度Max. Feed Size（mm） | 出料粒度Output Size（mm） | 产量Capacity (t/h) | 电机功率Power（KW） | 机重Weight（kg） | 外形尺寸Overall Dimension（mm） |
PC400×300 | 100 | ≤10 | 5-10 | 11 | 800 | 744×842×878 |
PC600×400 | 120 | ≤15 | 10-25 | 18.5 | 1500 | 1054×972×1117 |
PC800×600 | 120 | ≤15 | 20-35 | 55 | 3100 | 1515×2586×1040 |
PC1000×800 | 200 | ≤13 | 20-40 | 115 | 6500 | 3206×2210×1515 |
stone hammer crusher specification:
It’s important to choose different crushers for different demands. In order to achieve higher production efficiency, our engineers designed a more efficient crushing and screening ore process.
Hammer crusher is the earilest crusher, the biggest advantage is the simple structure. The hammer crusher can make the larger stone, rock, limestone to small size, but the PC series combined hammer crusher biggest disadvantage is crush the hardness less than 150MPa materials. Based on the practice, analysis is made on the defects of PC hammer crusher with improved technology, hammer crusher upgrade PC series combine hammer crusher that can crush the strength hardness less than 250Mpa materials .
