Brief Description:

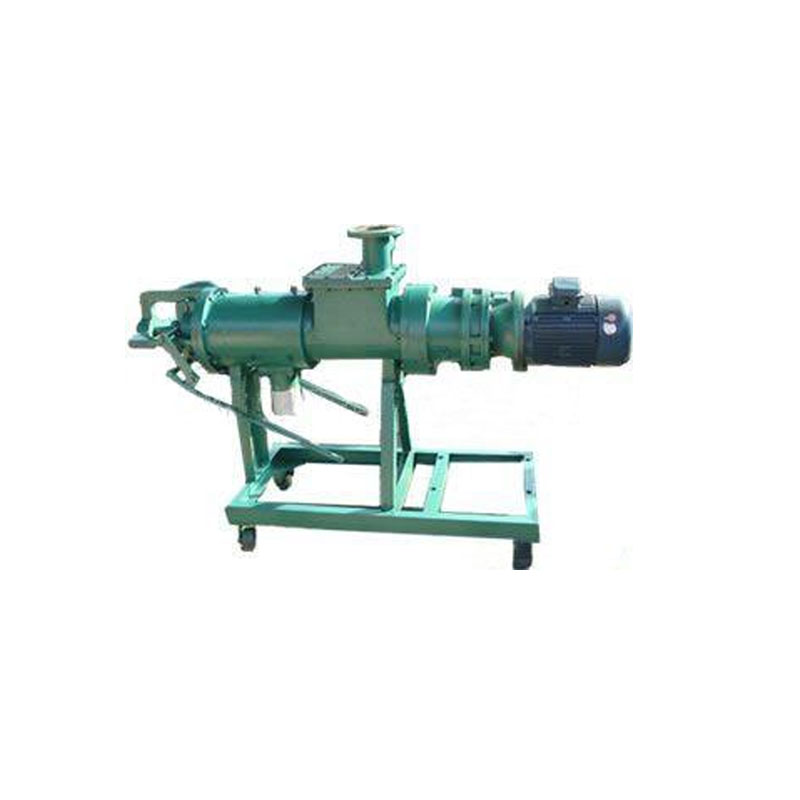

TDP poultry dung dewaterer can separate all kinds of poultry dung into liquid organic fertilizer and solid organic fertilizer.
The liquid organic fertilizer can be absorbed by crop directly, while solid organic fertilizer can be transported to the manurial deficiency area to be used to improve the soil structure, or made into organic complex fertilizer through fermentation.
Pump the original fecal sewage into the machine using slurry pump, then compress and separate the solid materials through screw axis equipped in the filter, while the liquid flows through the water outlet via the filter.
Operating principle:
Pump the original fecal sewage into the machine using slurry pump, then compress and separate the solid materials through screw axis equipped in the filter, while the liquid flows through the water outlet via the filter.
Main characteristics:
TDP poultry dung dewaterer is characterized by small size, low speed, easy operating and installation, convenient maintenance, low cost, high efficient, fast return, and no need for any flocculant.
The machine adopts screw axis and screen mat made of stainless steel.
Main technical parameters:
No | Specifications | TDP300 | TDP260 | TDP180 | TDP160 |
1 | Cow dung(Cubic/h) | 8-12 | 7-10 | 4-6 | 2-3 |
2 | Pig manure(Cubic/h) | 25-30 | 15-20 | 5-12 | 4-6 |
3 | Chicken manure(Cubic/h) | 7-8 | 5-7 | 2-4 | 2-3 |
Configuration parameters | Main engine | Pump | Vibration Machine |
Power(kw) | 5.5-11 | 3.0-4.0 | 0.18 |
Speed(r/min) | 33 | 1450 | 1450 |
Voltage(V) | 380 | 380 | 380 |
